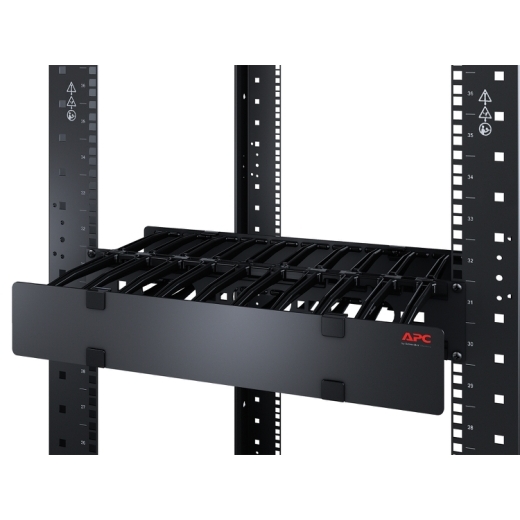

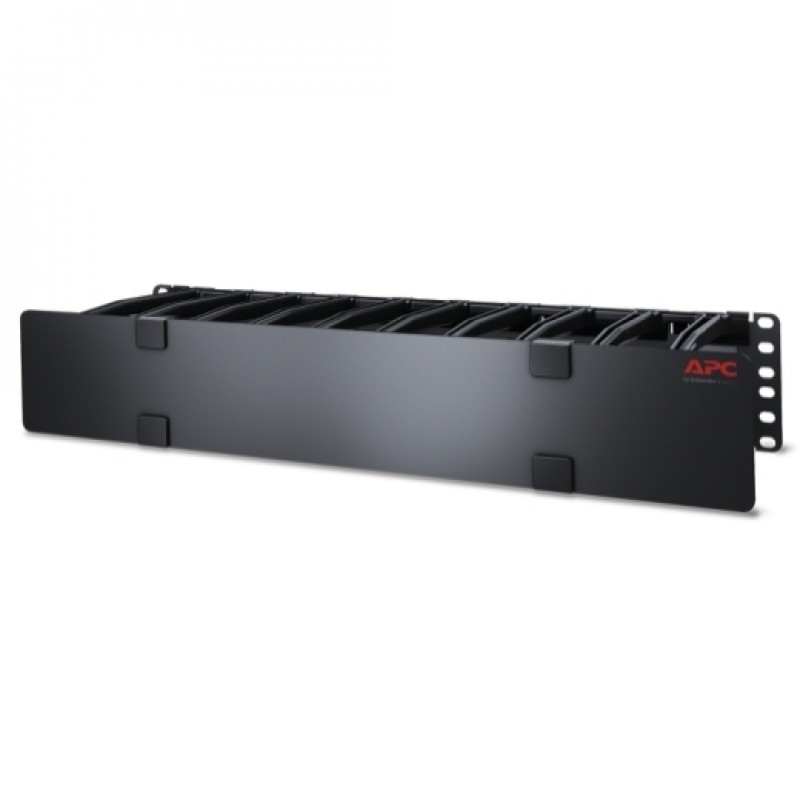

APC NetShelter Cable Management, Horizontal Cable Manager, 2U, with Cable Tie, Single Side with Cover, 482 x 89 x 165 mm

Key Features

Rack Height

2U

APC NetShelter Cable Management, Horizontal Cable Manager, 2U, with Cable Tie, Single Side with Cover, 482 x 89 x 165 mm

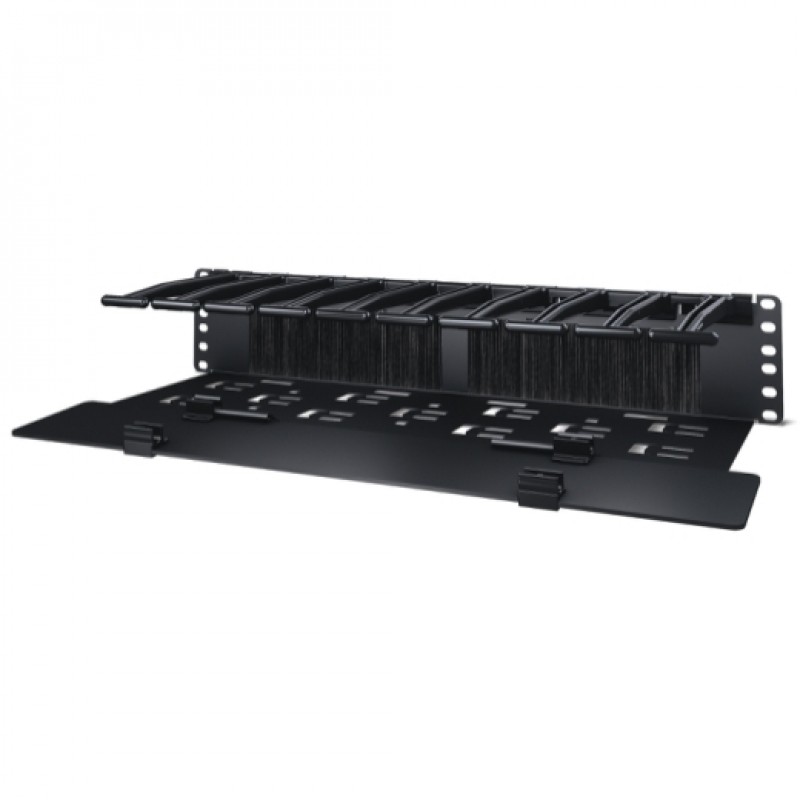

High density 2U, 6-in (150-mm) deep, horizontal cable manager with cover. Features cable access slots with pre-installed brush strips in the backplate for front to back cable pass-through and a bottom plate with features for additional cable tie-off and routing.

Includes: Double-sided cable manager configuration hardware, Installation guide, Mounting hardware

• Cable passthrough and air containment

  Pre-installed brush strips provide air containment and accessibility from the front to the rear of the enclosure.

• Cable protection

  Smooth plastic fingers provide proper bend radius.

• Cable tie-off bottom plate

  Horizontal cable manager bottom plate provides cable tie-off features for bundling cable with toolless hook-and-loop cable managers (AR8621).

• Double-sided capable

  Horizontal cable managers include double-sided configuration hardware to install (2) alike horizontal cable managers back-to-back for double-sided applications.

• High capacity cable finger design

  Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.

• Horizontal cable routing front-to-back

  Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.

• Trouble-free access

  Covers with snap hinges provide trouble-free access to cables.
