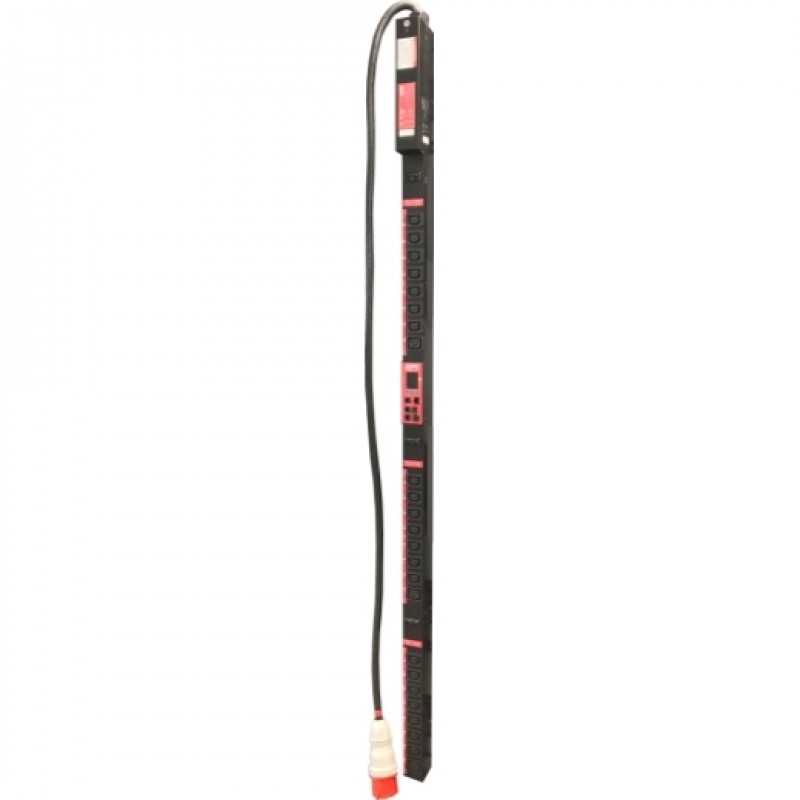

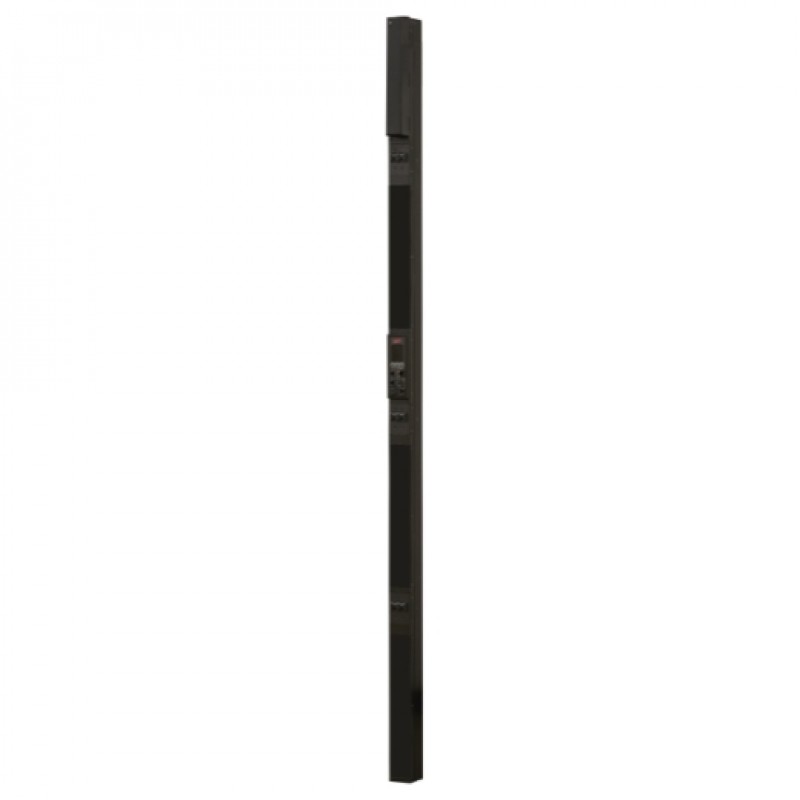

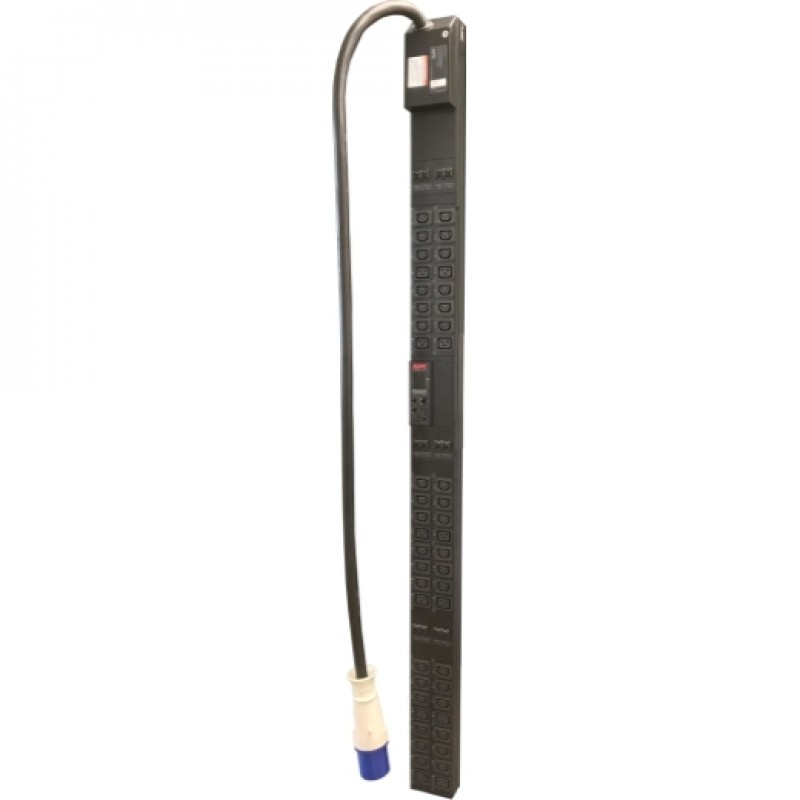

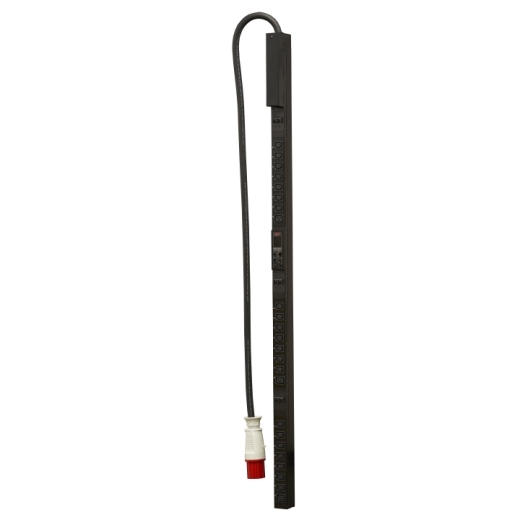

Custom Factory Configured Rack PDU

Key Features

Output Connections

(48) IEC 60320 C13

(48) IEC 60320 C19

Nominal Input Voltage

200V, 200V 3PH, 208V, 208V 3PH, 220V, 230V, 240V, 380V 3PH, 400V 3PH, 415V 3PH

Input Connections

CS8365C, IEC 60309, IEC 60309 16 A, IEC 60309 16 A 3P + N + PE, IEC 60309 20 A, IEC 60309 20 A 3P + N + PE, IEC 60309 30 A, IEC 60309 30 A 3P + N + PE, IEC 60309 32 A, IEC 60309 32 A 2P + E, IEC 60309 32 A 3P + N + PE, IEC 60309 60 A, IEC 60309 60 A 3P + PE, IEC 60309 63 A, IEC 60309 63 A 3P + N + PE, IEC 60320 C14, IEC 60320 C14 locking plug, IEC 60320 C20, NEMA 5-15P, NEMA 5-20P, NEMA L14-30P, NEMA L15-30P, NEMA L21-20P, NEMA L21-30P, NEMA L5-20P, NEMA L5-30P, NEMA L6-20P, NEMA L6-30P

Custom Factory Configured Rack PDU

Unique colors, input cord plugs and outlet configurations done simply and delivered to specification.

Includes: Installation guide

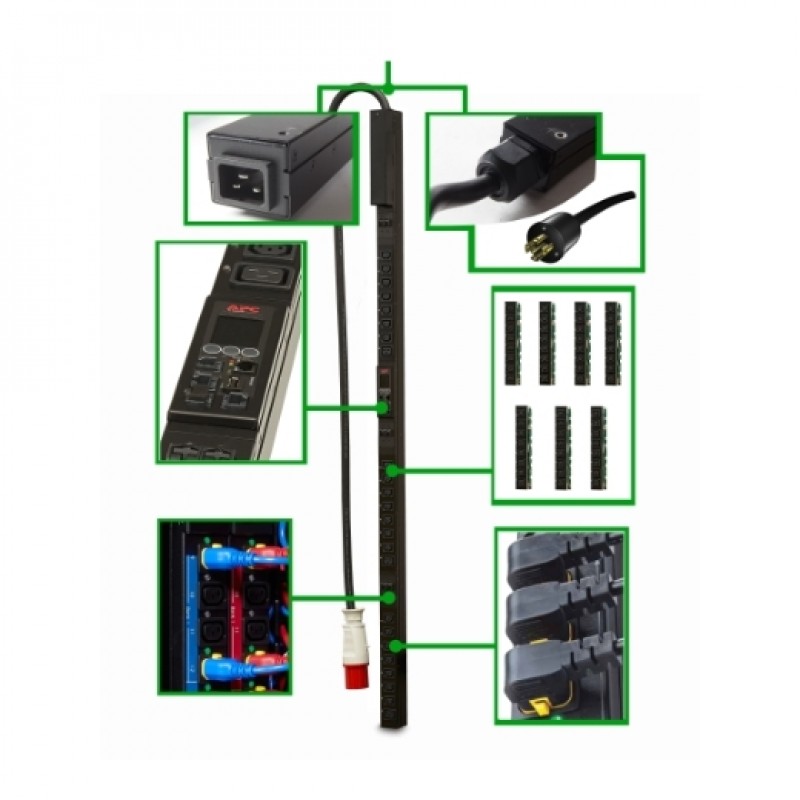

NetShelter Custom Rack PDUs Features & Benefits

Agility

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Availability

Outlet Power Sequencing

Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly.

Remote Individual Outlet Control

Remotely manage outlets so users can turn outlets off that are not in use (prevent overloads) or recycle power to locked-up equipment (minimize costly downtime and avoid travel time to equipment).

Metering-by-Outlet capability

Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning.

Network Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Load indicator LED

Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. (Note: Only available with units with local current monitoring feature)

Local Current Monitoring Display

The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)

Alarm Thresholds

Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.

Flash Upgradeable

Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
