DPH Series, Three Phase UPS 120 kVA

DPH 120 System

Introducing the next generation of modular
uninterruptible power supply (UPS)
systems de-signed for ultimate availability,
excellent performance, high efficiency,

Brand : Delta

Not available for online purchase*

Get Manual

Introducing the next generation of modular
uninterruptible power supply (UPS)
systems de-signed for ultimate availability,
excellent performance, high efficiency,
and ideally suited for medium-sized datacenters.

Excellent Power Performance

The industry's leading power technology offers up to 120kW within all equipped breakers in 162.8 kW/m3 which supports the top/bottom cable entry without additional cabinet to achieve the best utilization compared with its peers

High AC-AC efficiency over 96% and ECO mode to 99% resulting in marked energy cost savings

Green mode featuring a load aggregation function optimizes system efficiency

Ultimate Availability

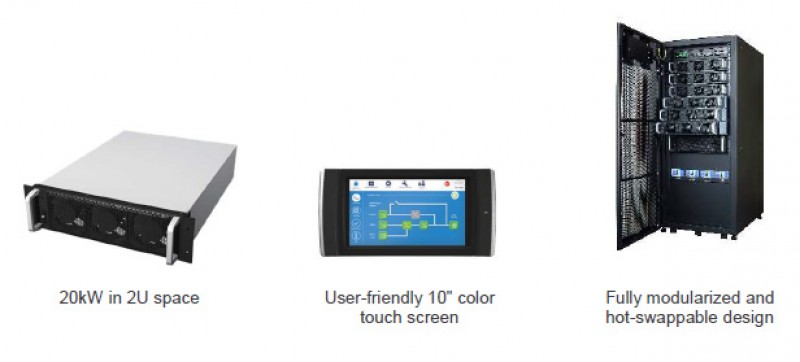

Fully modularized design and hot-swappable key modules ensure Mean Time To Repair (MTTR) close to zero without downtime risk

Redundant components and dual CAN bus delivers highest system availability and avoids single point of failure

Key components aging pre-warning mechanism to provide the proactive reliability to minimize the human error and reduce the downtime risk (optional)

High Manageability

User-friendly 10" color touch screen enables easy local UPS management

Environment information such as temperature, humidity and transmits signals from environment sensor can be integrated into the UPS for easy monitoring via the LCD of the UPS

If the UPS is equipped with an external battery management system, the battery information can be integrated into the UPS and monitored via the LCD of the UPS
