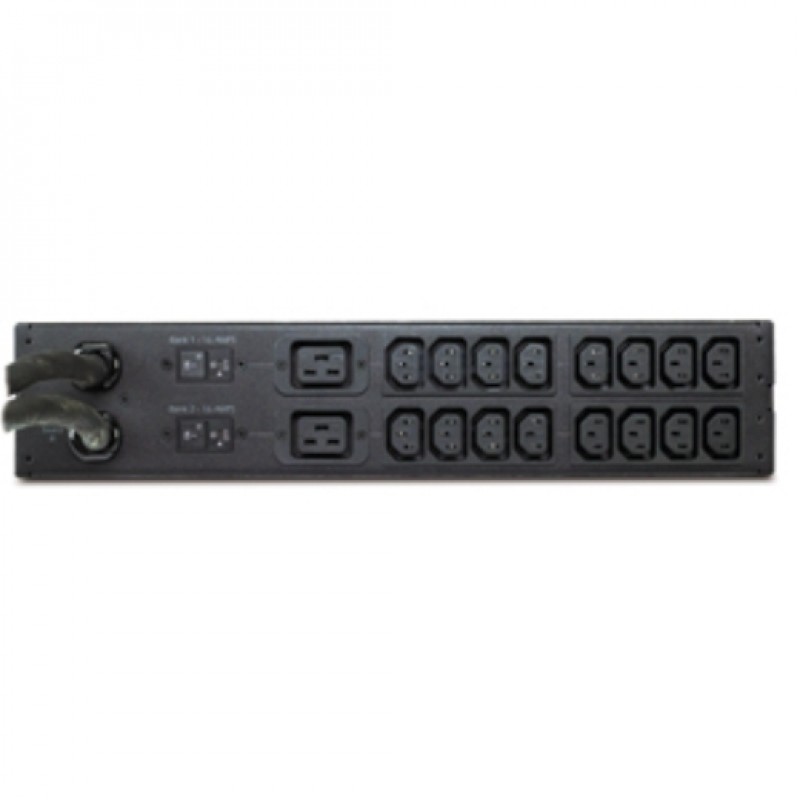

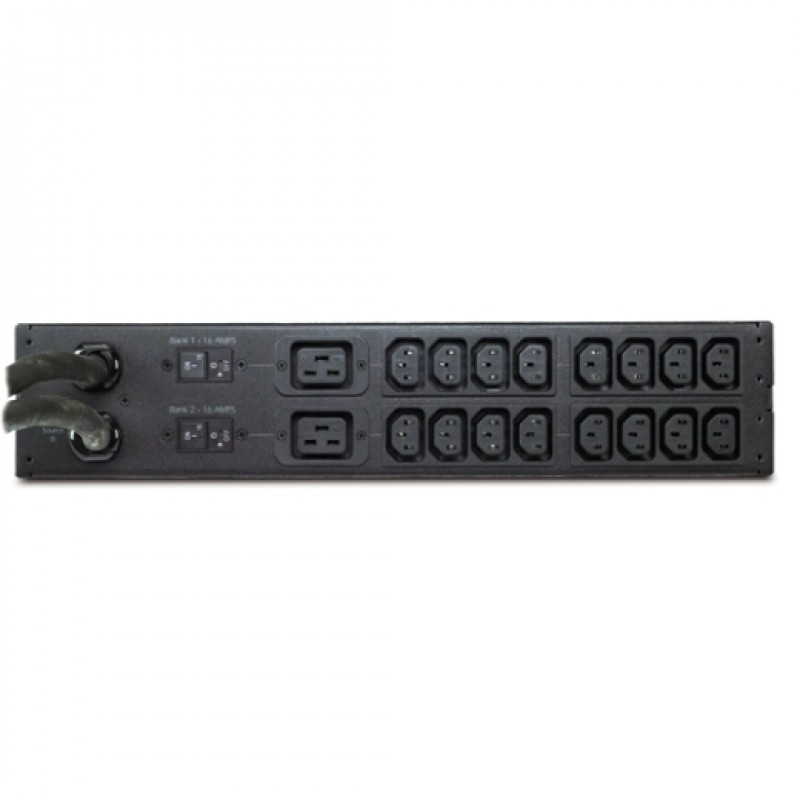

Rack ATS, 230V, 32A, IEC 309 in, (16) C13 (2) C19 out

Protection

10 kAIC Overcurrent Protection

Provides protection in the event of a significant overcurrent event.

Availability

Transfer time <10ms

Industry leading transfer time to ensure seamless ride through in the event of a primary power source failure.

Dual Input Power Sources

Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.

Agility

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.

Marketing features

Rack-Mountable

Occupys only 1U of valuable rack space. Puts the power where it is needed most - in the rack near the equipment.

Information Displays

Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit.

Manageability

Color LCD display

Provides more robust and intuitive local control and manageability.

Network Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
