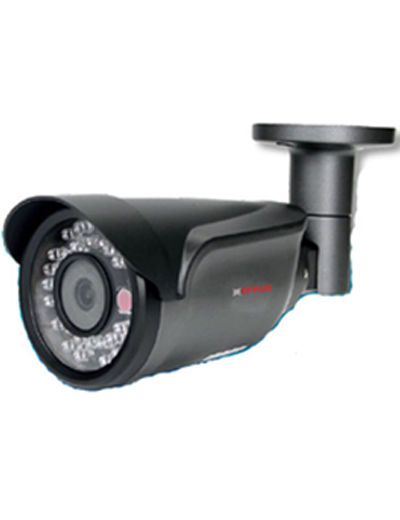

C-P Plus

CP-WNC-T6201-T

Brand : C-P Plus

Not available for online purchase*

Image Sensor	1/2.8”, 2Megapixel PS Sensor (7.112 centimeters)
Thermal Detection Sensor	LWIR Sensor, wavelength 8~14 um
Effective Pixels	1920 (H) × 1080 (V)
Angle of View	51°(HFOV), 39°(VFOV) / 1~3m
Minimum Illumination	Color: 0.2Lux@50IRE / F1.2 / 3100K / AGC:10(TBD); BW: 0.0005Lux@50IRE / F1.2 / 3100K / AGC:10(TBD)
Detection Degree	30 ~ 40°C
Shutter Speed	INDOOR / OUTDOOR / INDOOR-ANTI BLUR / OUTDOOR-ANTI BLUR / MANUAL(1/30~1/30000, 12steps)
White Balance	Auto / Autoext/ Preset / Manual
Temperature Accuracy	±0.5°C (@ 1M and 25°F/ 77 °F)
Gain Control (AGC)	0~10
Minimum Object Size	Distance 1m : 0.05m (H) x 0.05m (V) ; Distance 3m : 0.15m (H) x 0.15m (V)
Lens	Filter: True Day & Night (ICR) Type: 3.6mm Fixed Mega Pixel Lens
Detection Time	1, 3, 5, 10 sec
Video Compression	H.264 (MPEG4 AVC) Main profile, Baseline profile / MJPEG
Action Time	Keep On, 20, 30, 40, 50, 60 sec
Back Light Compensation	OFF/ ON / HLC (LEVEL(0~20) / COLOR)
Video Streaming	1st : H.264 Stream up to 1080p 30fps; 2nd : H.264 nHD Stream / 30fps; 3rd: JPEG 1080p Stream / 1fps
Resolution	1st: 1920×1080, 1280×720, 800×600, 704×480, 704×400, 640×360, 480×272, 320×184 ; 2nd : 640×360, 480×272, 320×184 ; 3rd : 1920×1080
Privacy Mask	ON / OFF (Box-10 Positions)
External Alarm In	1 Output / 1 Input (TBD)
ICR	AUTO / COLOR / BW / EXTERN
ROI	Max 2 x ROI area setting for fever detection
Defog	OFF / ON (MODE, LEVEL)
Protocol	HTTP / RTSP/RTP / Onvif (TBD) / TCP/IP / UDP / ARP / ICMP / DHCP/ NTP/ ONVIF
Bit Rate	128Kbps ~ 5Mbps
DSS	OFF/AUTO / x2/ x4 / x8 / x16 / x32
Ethernet	1 Fast Ethernet RJ-45 port (10/100Mbps)
Smart Phone	iPhone, iPad, Android Phone
IR	30pcs - IR LEDs
Operating Temperature	-10°C ~ 45°C
Humidity	0~80% RH
Power Source	DC 12V ±10% / PoE (36V~57V)
Power Consumption	IR OFF:150mA(MAX) / IR ON:400mA(MAX) (When PoE is used, the power consumption is increased by max 30% due to the power efficiency of PoE.)
Weatherproof Standard	IP66
Dimension	241mm × 78.6mm x 81.1mm
Weight	0.46kg

Technical Specifications
Specifications Call for More Information 18001030011	PDF	256kb
