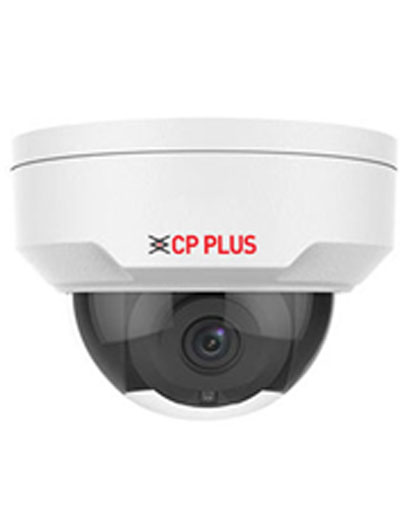

CP-VNC-V41R3-VMDS
CP-VNC-V41R3-VMDS
Brand : C-P Plus
Not available for online purchase*
Success! Thank you for getting in touch. We will respond to you very soon.
| Image Sensor | 1/3” 4Megapixel progressive CMOS (0.8467 centimeter) |
| Minimum Illumination | Colour: 0.003Lux (F1.6, AGC ON) 0Lux with IR on |
| BodyType | Vandal Dome |
| Shutter Speed | Auto/Manual, 1~1/100000s |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Lens | 2.8mm (3.6mm Optional) |
| Gain Control (AGC) | Auto/Manual |
| Angle of View | 2.8mm: 101.1° (H), 55.3° (V), 111.1° (O) ; 3.6mm: 83.7°(H), 44.9°(V), 89.2°(O) |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Wavelength | 850nm |
| Lens Type | Fixed |
| S/N Ratio | >56dB |
| Max. Aperture | F1.6 |
| Back Light Comp. | BLC / HLC / WDR(120dB) |
| Video Streaming | Main Stream: 4MP (2688x1520), Max 25fps; 4MP (2560x1440), Max 25fps; 3MP (2304x1296), Max 25fps; 1080P(1920x1080),Max30fps Sub Stream: 720P (1280x720), Max 30fps; D1 (720x576), Max 30fps; (640x360),Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps Third Stream: D1 (720x576), Max 30fps; (640x360),Max 30fps; 2CIF(704x288), Max 30fps; CIF(352x288), Max 30fps |
| DORI Distance | 2.8mm- 63m (Detect) 25.2m (Observe) 12.6m (Recognize) 6.3m (Identify); 3.6mm- 90m (Detect) 36m (Observe) 18m (Recognize) 9m (Identify) |
| Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Motion Detection | Up to 4 areas |
| Privacy Mask | Up to 4 areas |
| ICR | IR-cut filter with auto switch (ICR) |
| Defog | Digital |
| ROI | Up to 8 areas |
| OSD | Up to 8 OSDs |
| Bit Rate | 128 Kbps~16 Mbps |
| Audio | 1 Input: impedance 35kΩ; amplitude 2V [p-p]/ 1 output: impedance 600Ω; amplitude 2V [p-p] |
| Protocol | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, ONVIF (Profile S, Profile G, Profile T), API |
| Ethernet | 1 x RJ45 10M/100M Base-TX Ethernet |
| Smart Phone | iPhone, iPad, Android Phone |
| Smart Detection | Cross line, intrusion, enter area, leave area detection, Motion detection, tampering alarm, audio detection |
| IR Range | Array Range of 30 Mtr., Smart IR |
| Micro SD | Micro SD, up to 256GB |
| Operating Temperature | -30°C~60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Storage Temperature | -30°C~60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Power Source | DC 12V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max 4.5W |
| Weatherproof Standard | IP67 & IK10 |
| Dimension | Φ108.7mm x 81.1mm (Ø4.3” x 3.2”) |
| Casing | Metal + Plastic |
| Weight | 0.42kg |
| Technical Specifications | ||
|---|---|---|
|
