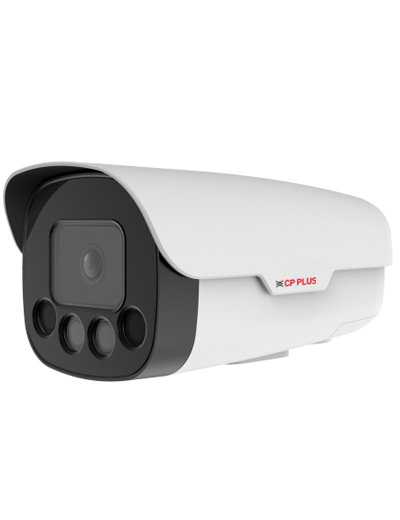

CP-VNC-T21-T

Brand : C-P Plus

Not available for online purchase*

Image Sensor	1/2.7", 2MP, progressive scan, CMOS (6.858 centimeters)
Resolution	2MP (1920 x 1080)
Lens	4.0mm
Angle of View	91.2° (H), 47.9° (V), 95.9° (O)
Gain Control (AGC)	Auto/Manual
Minimum Illumination	Color: 0.005Lux (F1.6, AGC ON) 0Lux with IR
Shutter Speed	Auto/Manual, 1 ~ 1/100000s
Back Light Compensation	BLC/ HLC/ WDR(120dB)
White Balance	Auto/Manual
Audio Compression	G.711
Audio	1 Ch. In/1 Ch. Out
Video Streaming	Triple
Frame Rate	Main Stream: 2MP (1920x1080), Max 30fps; Sub Stream: D1 (720x576), Max 30fps; Third Stream: CIF (352x288), Max 30fps
Video Compression	Ultra H.265/H.265/H.264/MJPEG
Privacy Mask	Up to 8 areas
Protocol	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, ONVIF (Profile S, Profile G, Profile T), API
S/N Ratio	>52dB
Micro SD	Micro SD, up to 256GB
OSD	Up to 6 OSDs
Smart Phone	iPhone, iPad, Android Phone
Smart Detection	Perimeter Protection, include Intrusion, Cross line, Motion detection
ROI	Up to 8 areas
Ethernet	1 RJ45 10M/100M Base-TX Ethernet
Operating Temperature	-30°C ~ +60°C (-22°F ~ 140°F)
Humidity	<95% RH (non-condensing)
Power Source	12 V DC±25%, PoE (IEEE802.3 af)
Power Consumption	Max 10 W
Weatherproof Standard	IP66
Dimension	202.9mmx104.1mm x98.4mm
Weight	0.84kg

Technical Specifications
Specifications Call for More Information 18001030011	PDF	256kb
