DPH Series, Three Phase UPS 300kVA

DPH 300 System

  • The world’s highest power density providing ultimate MW power protection with leading power performance
  • and superior reliabilityIn this IT...

    Brand : Delta

    Not available for online purchase*
    Success! Thank you for getting in touch. We will respond to you very soon.
    Get Brouchre Get Manual
  • The world’s highest power density providing ultimate MW power protection with leading power performance
  • and superior reliabilityIn this IT intensive world with heavy data traffic
  • driven by cloud, 4G/5G and media streaming applications,
  • IT managers are facing the challenges of increasing rack power density
  • and limited data center space.
  • Delta's innovative modular UPS technologies provide the answer to customers'
  • demand for high power density,
  • high power performance, and ultimate availability.

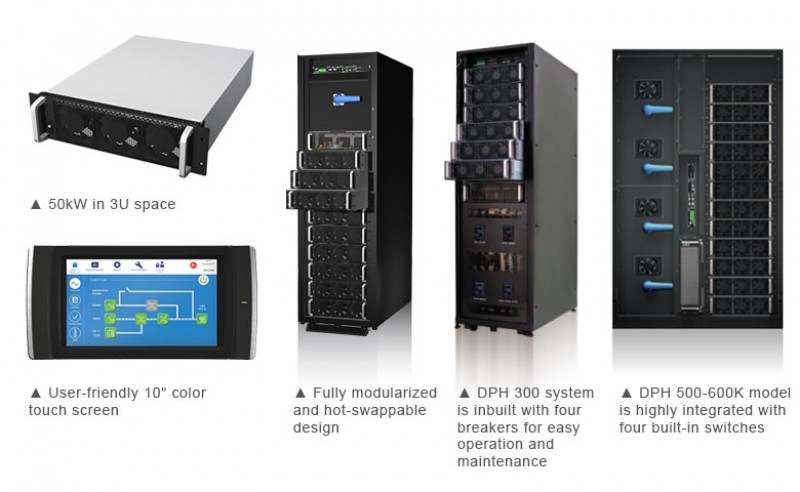

  • The brand-new Delta Modulon DPH series UPS -300kVA achieves the industry's
  • leading power density of 50kW per module,
  • offering the smallest footprint and best space utilization.
  • The Modulon DPH Series UPS is the ideal modular
  • power protection for MW data centers to achieve total cost of ownership (TCO) optimization.

Excellent Power Performance

The industry's leading power density per module at 50kW in 3U space, and the smallest footprint for 500kVA in a single rack and 600kVA in two racks, to achieve the best utilization compared with its peers

High AC-AC efficiency up to 96.5% and ECO mode to 99% resulting in marked energy cost savings

Green mode featuring a load aggregation function optimizes system efficiency

Ultimate Availability

Fully modularized design and hot-swappable key modules ensure Mean Time To Repair (MTTR) close to zero without downtime risk

Redundant components and dual CAN bus delivers highest system availability and avoids single point of failure

Modular UPS grows with your business by parallel expansion up to 8 units for 4.8MVA of total power capacity

High Manageability

User-friendly 10” color touch screen enables easy local UPS management

Environment information such as security, water, fire, and temperature can be integrated into the UPS for easy monitoring via the LCD of the UPS

If the UPS is equipped with an external battery management system, the battery information can be integrated into the UPS and monitored via the LCD of the UPS

Technical Specifications
Specifications
Call for More Information 18001030011 		PDF 256kb
Manuals and Warranties
USER MANUAL
User Manual for DPH 300 System. 		PDF 256kb
Brochure
Product Brochure
Contains all specifications and Features with pictures. 		PDF 256kb
