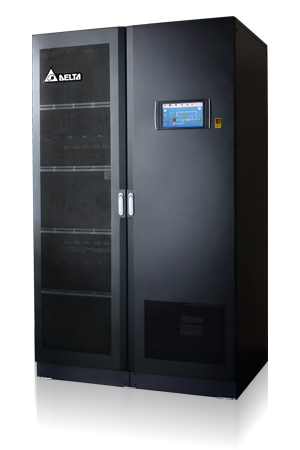

DPS Series UPS, Three Phase, 800kVA

Ultimate Availability

Supports up to 10 MW power capacity with the parallel redundancy and expansion up to 8 units

Redundancy components and dual CAN bus ensures system availability

Proactive detection of key component status for early diagnosis on UPS malfunction

Intelligent battery health diagnosis enables better battery maintenance and replacement

Advanced event analysis, including 10, 000 event logs, waveform capturing and key paremeters recording, to detect UPS abnomality and ensure higher availability

Excellent Performance

The industry's leading power density and smallest footprint with the design of both top/button cable entry and inbult switches, which allows you to flexibly utilize the space under the circumstance of high power requirements

Unity output power factor guarantees no-rating and provides 100% kW

AC-AC efficiency of up to 96.5% and 99% in ECO mode resulting in marked energy cost savings

Supports both VRLA and environment-friendly Li-ion batteries

Sophisticated Manageability and Flexibility

User-friendly 10” color touch panel simplifies local UPS management

Environment information, such as security, water, fire, and temperature can be integrated and monitored via the LCD panel of the UPS

If the UPS is equipped with an external battery management system, the battery information can be integrated and monitored via the LCD panel of the UPS

Fully front access and modular design of key components shortens the mean time to repair (MTTR)

Flexible battery quantity of 30-46 pcs achieves optimal battery investment
