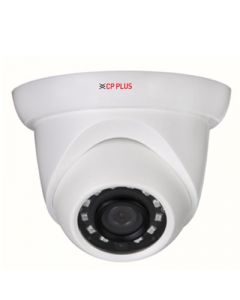

CP-UNC-DA41L3S-D

Brand : C-P Plus

Not available for online purchase*

Image Sensor	1/3” 4MP Progressive scan CMOS (0.84667cm)
Minimum Illumination	0.08Lux/F2.0( Color,1/3s,30IRE) 0.3Lux/F2.0( Color,1/30s,30IRE) 0Lux/F2.0(IR on)
Effective Pixels	2688(H) x 1520(V)
BodyType	Dome
Shutter Speed	Auto/Manual, 1/3~1/100000s
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Lens	2.8mm (3.6mm optional)
Gain Control (AGC)	Auto/Manual
Video Compression	H.265+/H.265/H.264+/H.264
Angle of View	H:104°/87°, V:57°/48°
S/N Ratio	More than 50dB
Back Light Comp.	BLC / HLC / WDR(120dB)
Video Streaming	4MP(1 ~ 20fps)/3MP(1 ~ 25/30fps), D1/CIF(1 ~ 20fps), 720P(1 ~ 15fps)
Digital Zoom	16x
Resolution	4M(2688x1520/2560x1440)/3M(2304×1296)/ 1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480)/ CIF(352×288/352×240)
Motion Detection	Off / On (4 Zone, Rectangle)
Privacy Mask	Off / On (4 Area, Rectangle)
ICR	Auto(IR-Cut) / Color / B/W
ROI	Off / On (4 Zone)
Bit Rate	H.265: 12K ~ 8448Kbps , H.264: 32K ~ 10240Kbps
Protocol	HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP; ONVIF, PSIA, CGI
Ethernet	RJ-45 (10/100Base-T)
User Account	20 Users
Smart Phone	iPhone, iPad, Android Phone
IR Range	IR Range of 30 Mtr.
Operating Temperature	-30°C~+60°C , Less than 95%RH
Power Source	DC12V, PoE (802.3af)
Power Consumption	<4.7W
Weatherproof Standard	IP67
Dimension	Φ108mm x 84.9mm
Weight	0.23 Kg

Technical Specifications
Specifications Call for More Information 18001030011	PDF	256kb
